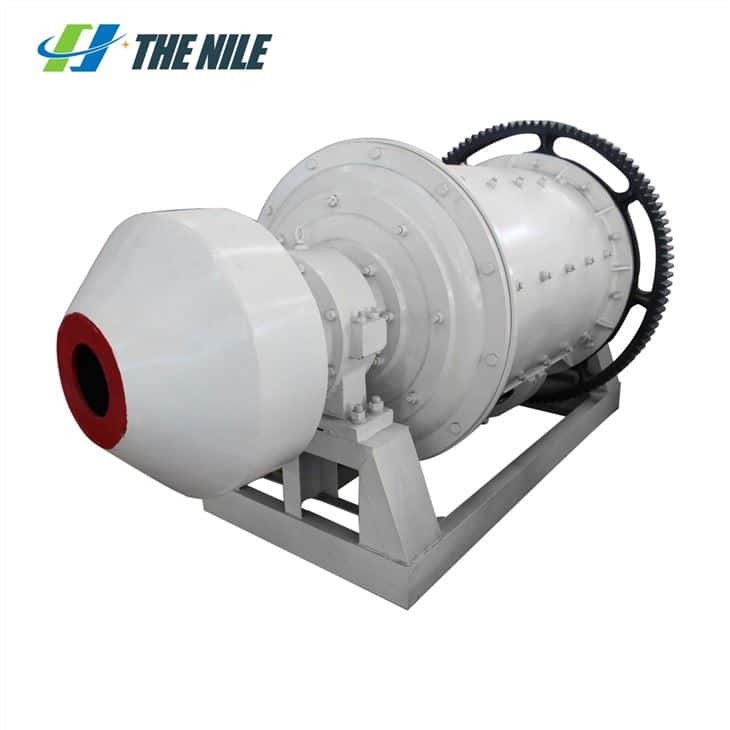

ball grinder mill is a commonly used milling equipment, which can be used in the dry milling production of various non-metallic materials such as cement and pulverized coal balls. It can grind feldspar, dolomite, glass, etc.
Product description:

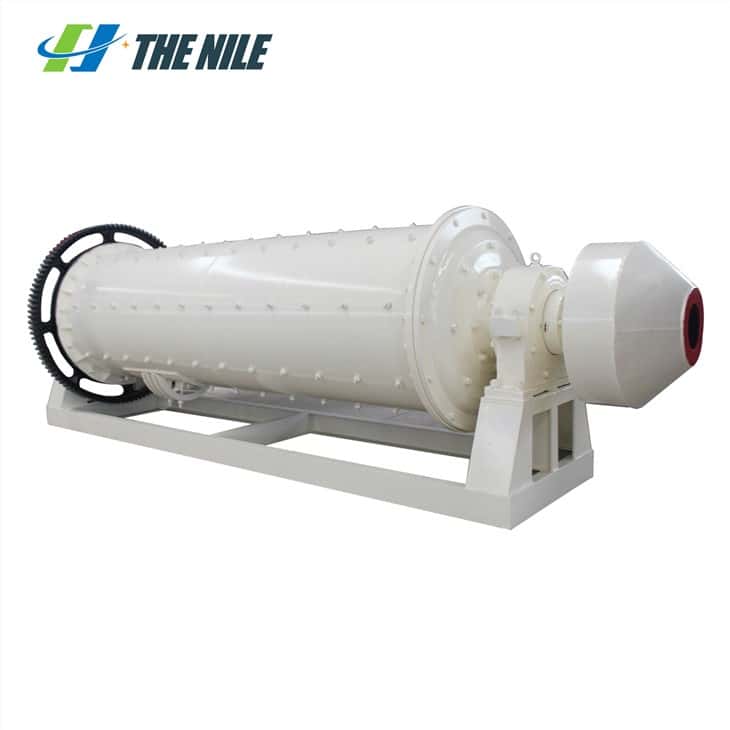

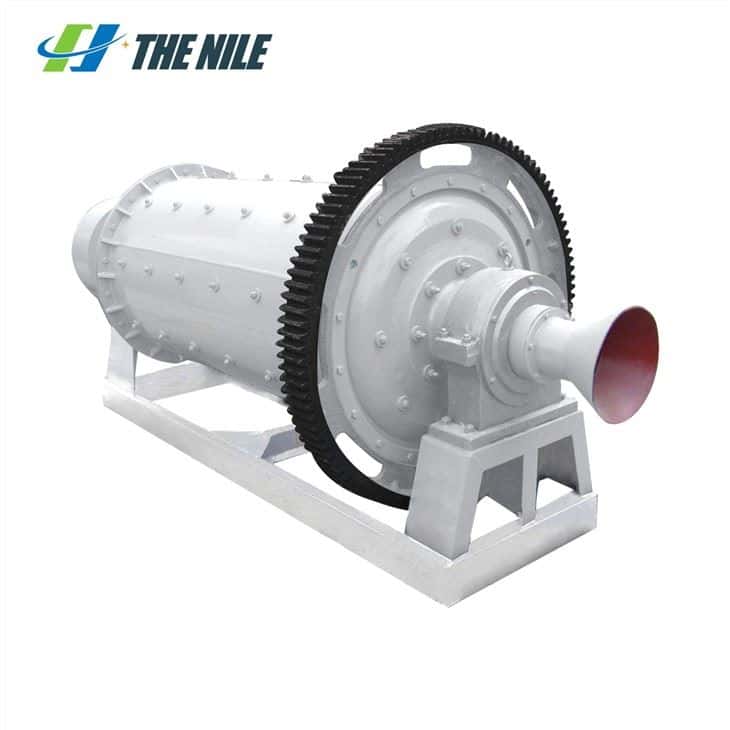

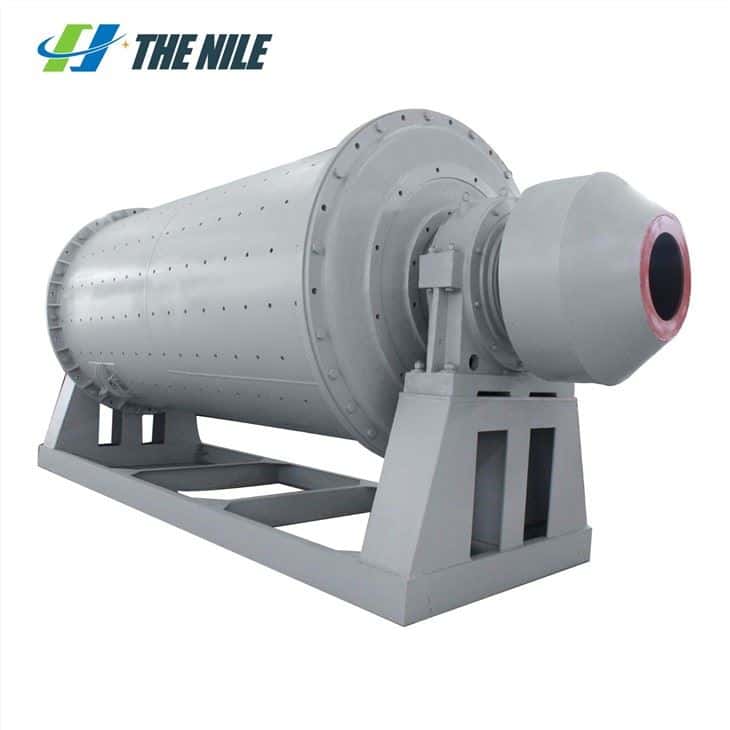

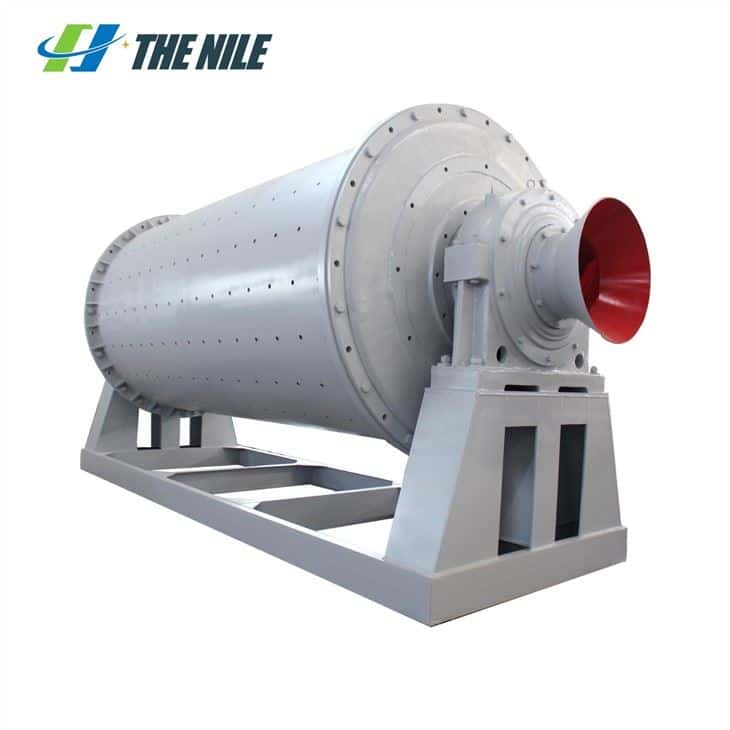

The ball grinder mill is a cylindrical tube mill, which is widely used in the production industries of cement, new building materials, silicate products, refractory materials, ferrous and non-ferrous metal beneficiation, and glass ceramics. It has many advantages such as large single machine capacity, long service life, energy-saving, and environmental protection, and simple operation.
Working principle
The main body of the ball grinding mill is a low-speed rotating cylinder mounted horizontally on two large bearings. The ball mill is decelerated and driven by a motor through a reducer and surrounding large gears, or a low-speed synchronous motor is directly decelerated through a surrounding large gear to drive the rotating part to rotate. The cylinder is equipped with steel balls with appropriate grinding media. The grinding medium is lifted to a certain height under the action of centrifugal force and frictional force and falls in a state of throwing or venting. The ground material continuously enters the inside of the cylinder through the feeding port, is crushed by the moving grinding medium, and is discharged out of the machine through the force of overflow and continuous feeding for the next process processing.
Features of ball grinder mill

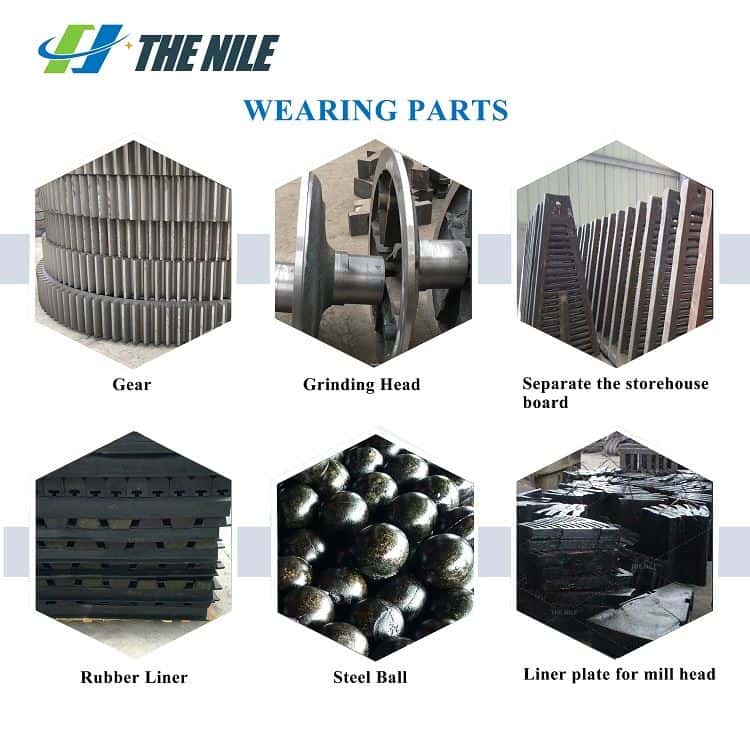

1. Long service life. The cylinder of the ball grinding mill machine is equipped with a wear-resistant liner, which has strong wear resistance. The sliding bearing is changed to a rolling bearing, which has a large bearing capacity and a long product life.
2. Simple structure and convenient maintenance. The hollow shaft of the ball powder mill is made of cast steel, and the inner lining is removable and easy to replace.
3. Energy saving and environmental protection. The ball mill machine has a low starting current, low power consumption and is equipped with an induced draft device, which has a good dust removal effect.
4. High work efficiency. Compared with ordinary ball grinder mills, the powder ball mills produced by the Nile have greatly improved working efficiency.
Structural composition of ball mill for sale

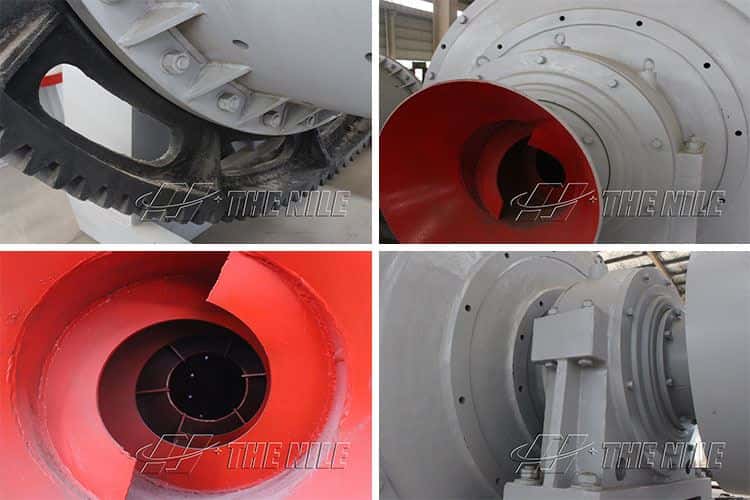

The ball mill equipment is mainly composed of the feeding part, reducer, gear, discharging part, motor, rotating part, and other main parts.

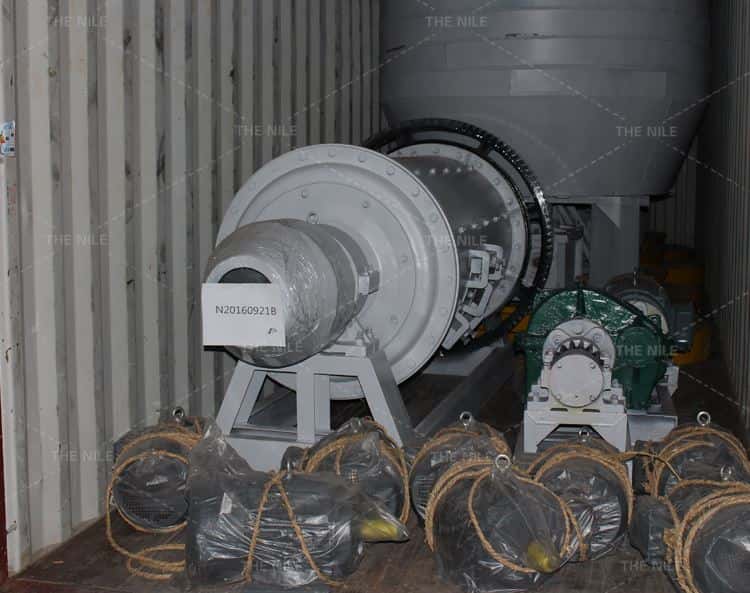

Packaging and shipping

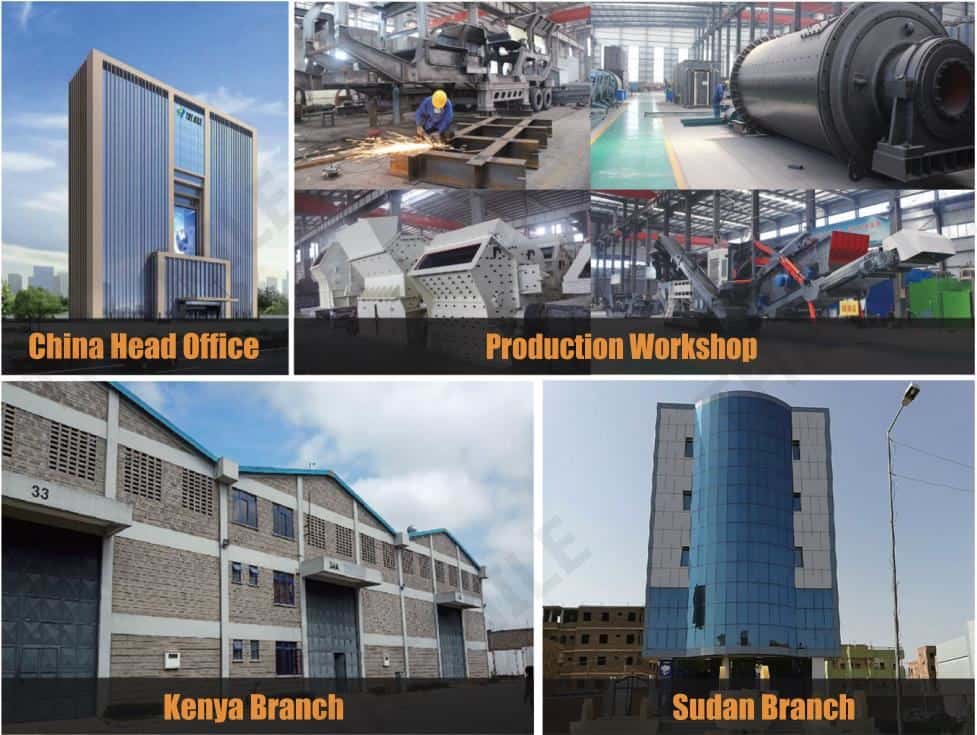

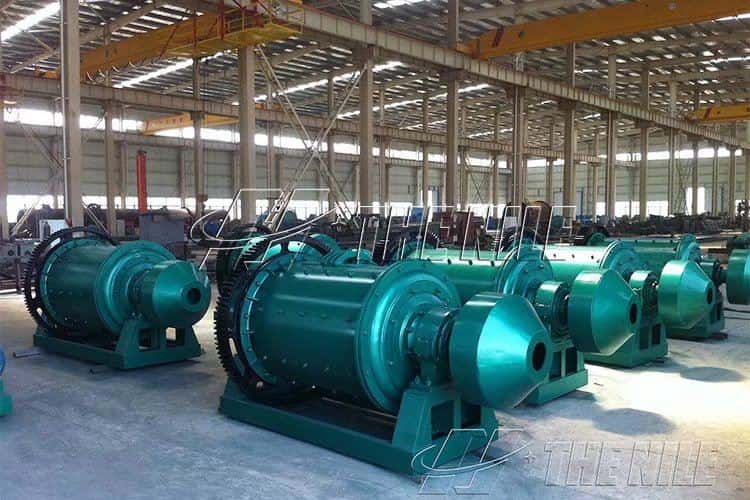

Company strength
The Nile Machinery Equipment Co., Ltd. is a metallurgical machinery professional machinery factory that specializes in mining equipment research and development, manufacturing, sales, and provides professional mining processing plant workflow design, plant installation, equipment maintenance, and mineral processing technical guidance services. Our products are exported to Africa, Nigeria, Zambia, Zimbabwe, Uganda, Mozambique, South America, the Middle East, and many other countries and regions. At present, we have established our own overseas warehouses in Sudan and Kenya, and we also have our offices in most parts of Africa. You can observe the machinery up close and buy directly, saving transportation costs and time.

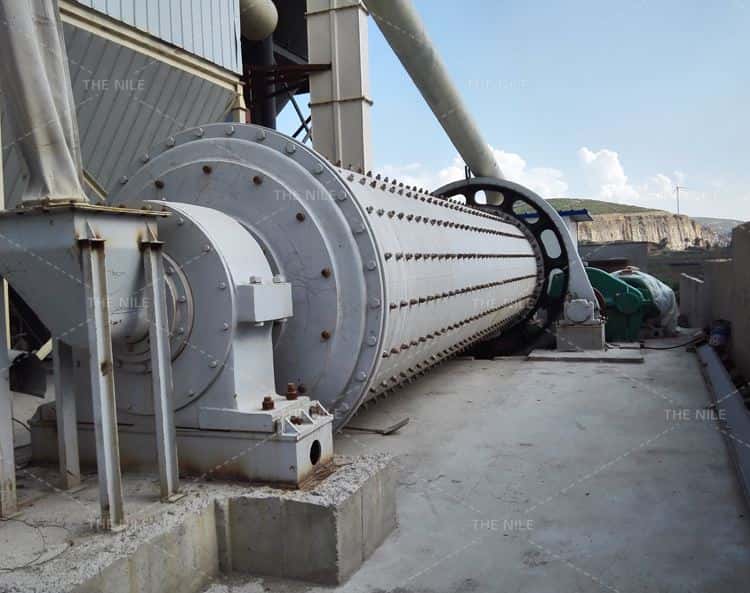

customer visit
| dry ball mill | Ball loading | Feed size | capacity | Performance engine power | Weight | |
| （t） | (мм) | (t/h) | (kw) | (t) | ||
| Ф1200×4500 | 6.5 | ≤25 | 1.4-2 | 45 | 13.1 | |
| Ф1500×5700 | 13 | ≤25 | 3.5-4.5 | 130 | 24 | |
| Ф1830×6400 | 21.6 | ≤25 | 5.5-6.5 | 210 | 38 | |
| Ф1830×7000 | 23.5 | ≤25 | 6-7 | 210 | 43 | |
| Ф2200×6500 | 31.5 | ≤25 | 8-10 | 380 | 50.2 | |
| Ф2200×7500 | 36 | ≤25 | 10-11 | 380 | 53.2 | |
| Ф2200×8000 | 39 | ≤25 | 10-12 | 380 | 55 | |
| Ф2200×9500 | 46 | ≤25 | 14-16 | 475 | 65 | |
| Ф2400×11000 | 64 | ≤25 | 19-21 | 680 | 99.2 | |
| Ф2400×13000 | 75.5 | ≤25 | 21-23 | 800 | 115.2 | |
| Ф2600×13000 | 122 | ≤25 | 28-32 | 1000 | 148 | |
| Ф3000×12000 | 109 | ≤25 | 32-35 | 1250 | 168.6 | |
| Ф3000×13000 | 118 | ≤25 | 34-37 | 1400 | 172.3 | |
| Ф3200×13000 | 185 | ≤25 | 45-50 | 1600 | 218 | |
| Ф3800×13000 | 189 | ≤25 | 60-62 | 2500 | 286 | |
| Ф4000×13000 | 231 | ≤25 | 85-87 | 3550 | 320 |
