Crawler mobile crushing station mainly composed of impact crusher vibrating screen and belt conveyor. Widely used in mine, quarrying, rubbish, the recycling of construction waste, earth and stone works, urban infrastructure, road, building site and so on.

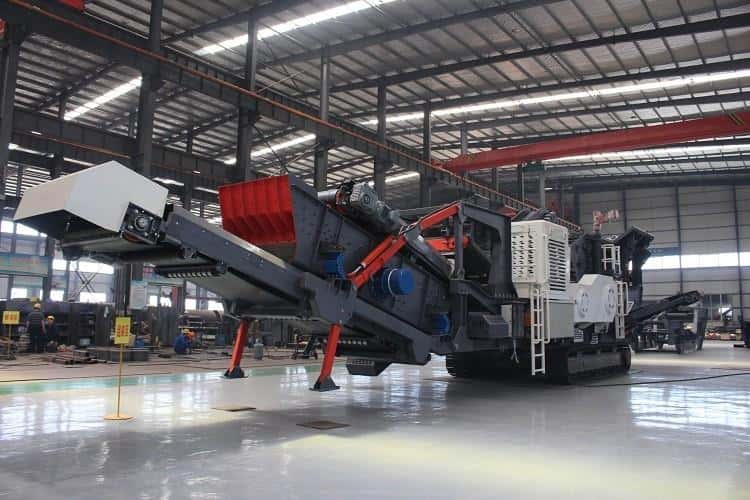

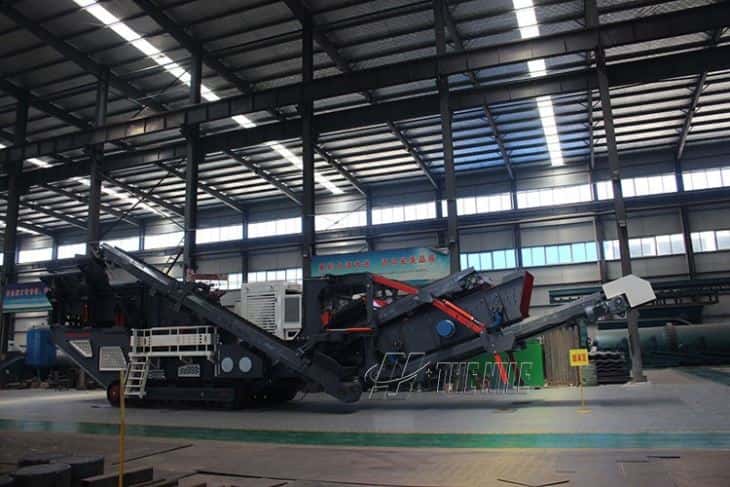

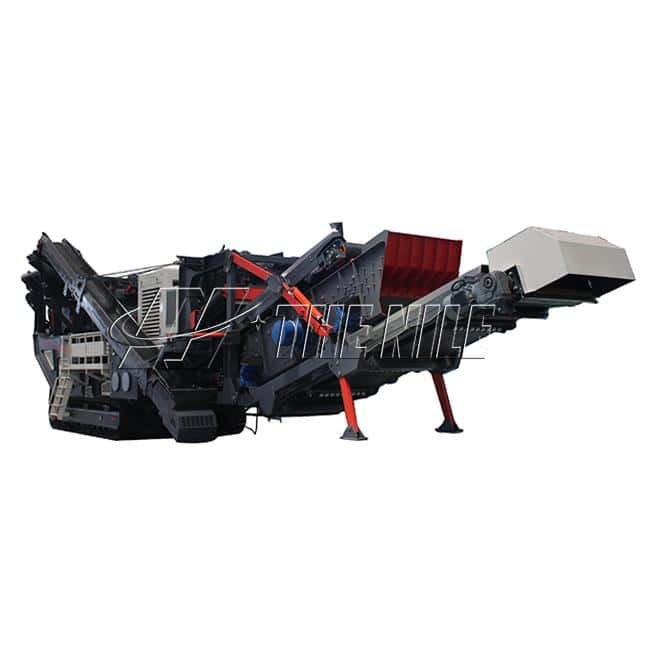

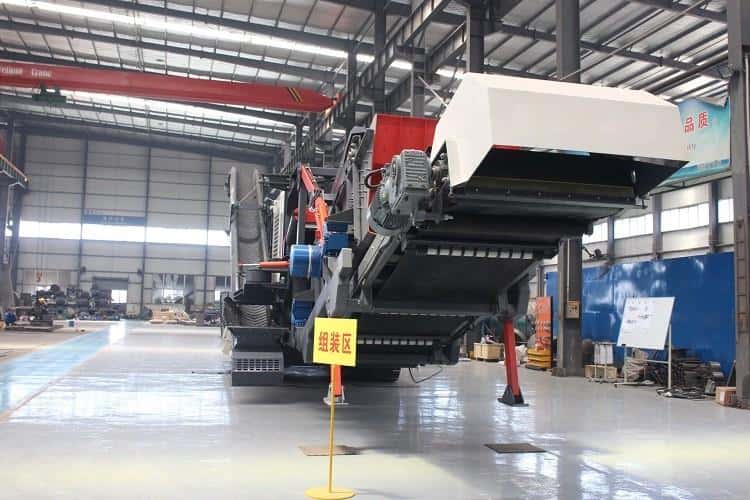

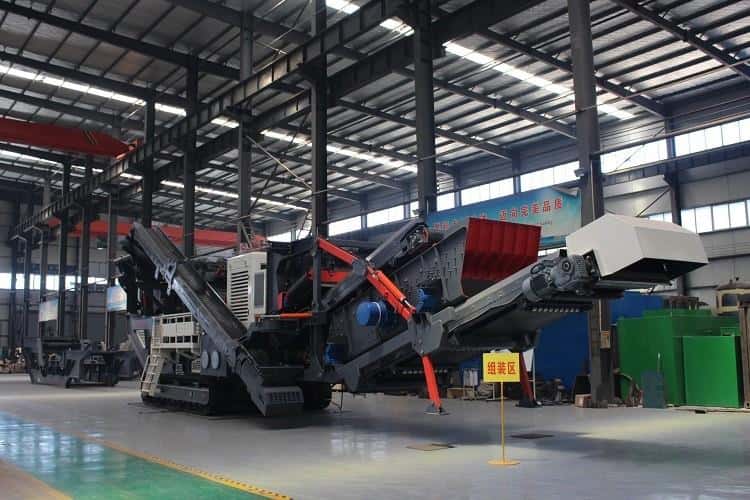

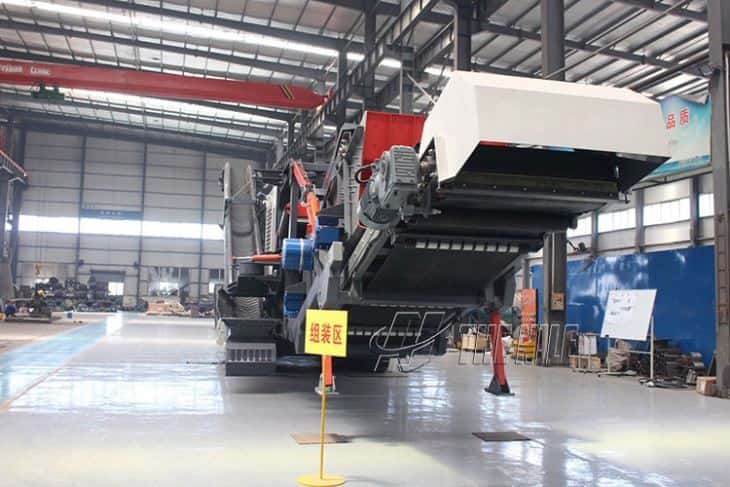

Impact crawler mobile crushing station
| Impact crawler mobile crushing station is a complete mobile crushing and screening plant which consists of raw material bins which located on one or more trailers, vibrating feeders, primary crushers, multi-layer vibrating screens, secondary crushers, fine crushers, mobile belt conveyors, electric control systems and etc. Widely used in mine, quarrying, rubbish, the recycling of construction waste, earth and stone works, urban infrastructure, road, building site and so on. |
Working Principle Materials are transported to the impact crusher through the feeder, after the primary crushing of jaw crusher, using the circular vibrating screen to realize recycling crushing. The finished materials are transported out by the belt conveyor to be crushed continuously. Mobile impact crusher can remove circular vibrating screen according to the actual production needs to realize the primary crushing directly. It has the advantage of simple and flexible operation. |
Main Features 1. Fuel oil saving rate can reach 25%, and the sieving mode is not only in line with environmental protection but low cost. 2. Convenient transport, no harm to road, multifunctional equipments and wide application scope. 3. Turning in place with the capability of all-wheel drive, standard configuration, fast equipment changing, perfect protection system, best fit in narrow and complicated terrains. 4. Light weight, small size and best fit in narrow place. 5. Mechatronic-hydraulical integrated multifunctional construction machinery and highly constructed with the small, medium and large size. |
Impact crawler mobile crushing station | 1010PFS | 1210PFS | 1214PFS | |
Crusher plant size | Length(m) | 10.8 | 12.2 | 12.5 |
Width(m) | 2.5 | 2.7 | 2.9 | |
Height(m) | 4.2 | 4.2 | 4.2 | |
Impact crusher | Feed size(mm) | 350 | 350 | 400 |
Output size(mm) | 5-60 | 5-60 | 5-60 | |
Capacity(t/h) | 50-80 | 70-120 | 130-180 | |
Motor power(kw) | 55-75 | 110-132 | 160-200 | |
Vibrating feeder | Capacity(t/h) | 80-120 | 100-160 | 130-260 |
Motor power(kw) | 7.5 | 11 | 15 | |
Dimension(m) | 3.3*1.6*1.3 | 3.7*1.8*1.2 | 4.3*1.8*1.4 | |
Conveyor belt | Width(mm) | 500 | 500 | 650 |
Speed(m/s) | 0.8-2 | 0.8-2 | 0.8-2 | |
Our Service Pre-sale services (1) Advice of model choice. (2) Design and manufacture machines according to customer's special requirements (3) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program After-sale services (1) Arrange technicians to go to the site to guide installation (2) If your machine is out of warranty period, you can go to the Nile's overseas office to buy spare parts. (4) Complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction. |
