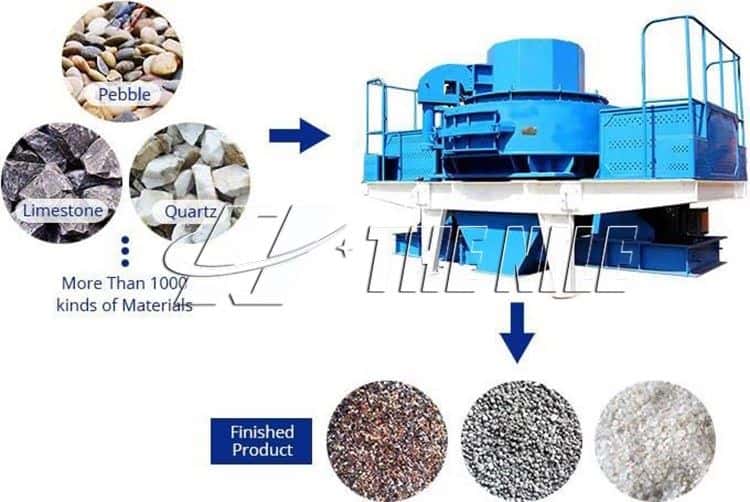

Processing Materials: VSI sand crusher is used for crushing rock, quartz, sandstone, aggregate, gravel, granite, limestone, basalt, cobbble, dolomite, calcite, etc. Applied Filed: VSI sand crusher is widely applied in building, highway, construction, concrete batching plant, construction waste crushing and other projects.
Application of Vsi Sand Crusher
1. Artificial sand making of river pebbles, mountain rocks such as limestone, granite, basalt, diabase, andesite, etc., ore tailings and stone chips.
2. Production of building aggregates, road fabrics, cushion materials,asphalt concrete and cement concrete aggregates.
3. Machine-made sand production and stone shaping for water conservancy and hydropower, high-grade highways, expressways, high-speed railways, bridges, airport runways, municipal engineering and high-rise buildings in the engineering field.
4. High abrasiveness and secondary disintegration crushing, sulfur removal in thermal power and metallurgical industries, steel slag and other environmental protection projects.
5. Production of quartz sand, glass and other high purity materials.

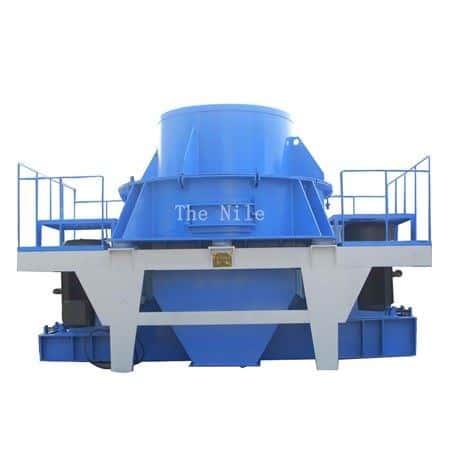

Performance Characteristicsof Vsi Sand Crusher
1. Large processing capacity and high output. Compared with the traditional sand maker with the same power, the output is increased by 30%.
2. Low consumption of wearing parts. Vsi sand crusher adopts the best impact angle design of crushing cavity material, which directly reduces the 30% cost of sand making plant by making less friction with wear-resistant parts.
3. Excellent grain shape of the product. The finished product of VSI sand crusher has a good cubic grain shap with reasonable gradation and adjustable fineness modulus, which especially suitable for artificial sand making and stone shaping.
Model No. | VSI7611 | VSI8518 | VSI9526 | VSI1140 | VSI1145 | |
Capacity | Cascade Feeding | 120-180 | 200-260 | 300-380 | 450-520 | 500-640 |
Full Central Feeding | 60-90 | 100-130 | 150-190 | 225-260 | 250-360 | |
Max. Feeding size(mm) | Soft Material | 35 | 40 | 45 | 50 | 50 |
Hard Material | 30 | 35 | 40 | 45 | 45 | |
Rotation Speed (r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | 1100-1310 | |
Model of Motor | Y250M-4 | Y280M-4 | Y315M-4 | Y315L2-4 | Y315L2-4 | |
Double Motor Power | 55*2 | 90*2 | 132*2 | 200*2 | 220*2 | |
Weight (t) | 10 | 12 | 16 | 25.6 | 27.5 |
