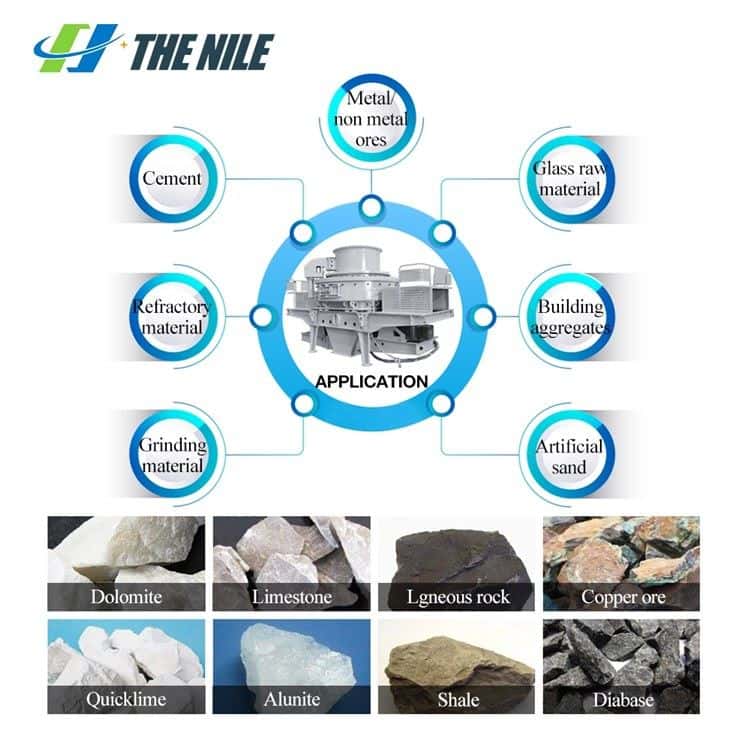

Processing Materials: Vsi sand machine is used for crushing calcite, pebble, granite, concrete, quartz, dolomite, bluestone, iron ore, limestone etc. Applied Field: Vsi sand machine is widely applied in mining, metallurgy, building materials, chemical industry, refractories, cement, abrasives and other industries.

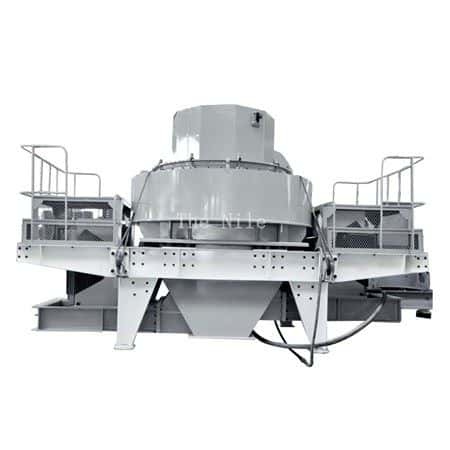

Production Description of Vsi Sand Machine
Vsi sand machine is the latest type of sand making machine, which can save 50% energy compared with traditional sand making machine. Vsi sand making machine can make all kinds of rocks, sandstones and river pebbles into building sand with various grain sizes. The sand has uniform particle size and high compressive strength, which can meet the construction requirements and improve construction quality than natural sand produced by the ordinary sand maker. Vsi sand making equipment has the characteristics of reliable performance, reasonable design, convenient operation and high efficiency.
Advantages of VSI Sand Machine
1. The vsi sand making equipment has a simple structure and stable operation.
2. VSI sand making machine has low energy consumption and high output.
3. VSI sand maker has the characteristics of convenient operation, installation and maintenance.
4. During the crushing, the stone materials can form a protective bottom layer which makes the vsi sand maker machine more durable.
5. Some easy wear parts of VSI sand making plant are made of hard wear-resistant materials, which are small in size and light in weight and easy to be replaced.
Model No. | VSI7611 | VSI8518 | VSI9526 | VSI1140 | VSI1145 | |
Capacity | Cascade Feeding | 120-180 | 200-260 | 300-380 | 450-520 | 500-640 |
Full Central Feeding | 60-90 | 100-130 | 150-190 | 225-260 | 250-360 | |
Max. Feeding size(mm) | Soft Material | 35 | 40 | 45 | 50 | 50 |
Hard Material | 30 | 35 | 40 | 45 | 45 | |
Rotation Speed (r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | 1100-1310 | |
Model of Motor | Y250M-4 | Y280M-4 | Y315M-4 | Y315L2-4 | Y315L2-4 | |
Double Motor Power | 55*2 | 90*2 | 132*2 | 200*2 | 220*2 | |
Weight (t) | 10 | 12 | 16 | 25.6 | 27.5 |
