Applied Field: Mobile crushing and screening plants are widely used in highway, railway, mineral processing, hydropower engineering, building materials, construction waste and other fields. Mobile crushing and screening plants is widely used for crushing more than 200 materials such as pebbles, granite, bluestone, quartz stone, basalt, concrete, etc.

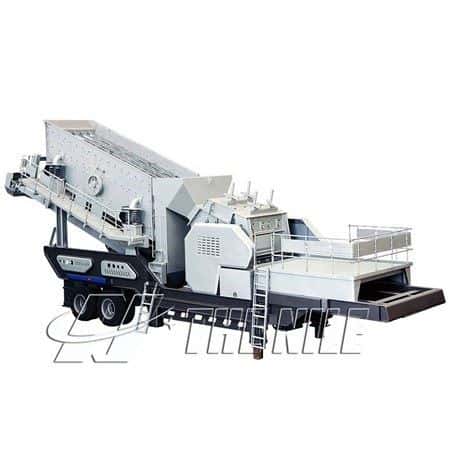

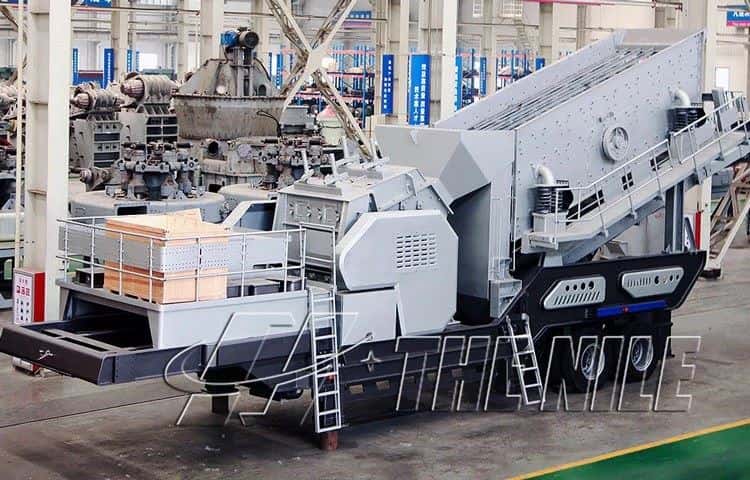

Introduction of Mobile Crushing and Screening Plants
Mobile crushing and screening plants are divided into three types: fixed type, semi-mobile type (sled type), and mobile type. It is composed of jaw crusher, impact crusher, cone crusher, roller crusher, reversible crusher, vibrating feeder, vibrating screen, vertical shaft impact crusher, shaping machine, sand washing machine, belt conveyor, etc.
Performance Advantages of Mobile Crushing and Screening Plants
1.Wide range of application: due to its good mobility, mobile crushing and screening plants can not only be competent for the work of traditional crushers but also be used for processing materials that often need to be relocated, such as metallurgy, chemical industry, building materials, water and electricity, especially suitable for the operation of mobile stones in the site of highways, railways, hydropower projects, etc.
2.Strong integration of automation: the mobile crushing and screening plants integrate crushing, screening, and conveying, which can complete the crushing and screening of materials at one time, saving time and effort.
3. Strong combination: users can make good and reasonable mobile crushing and screening plants assembly according to their own production needs.
Technical Parameters ofMobile Crushing and Screening Plants
Mobile Crushing and Screening Plants | PP1010PFS | PP1210PFS | PP1214PFS | |
Crusher plant size | Length(m) | 10.8 | 12.2 | 12.5 |
Width(m) | 2.5 | 2.7 | 2.9 | |
Height(m) | 4.2 | 4.2 | 4.2 | |
Impact crusher | Feed size(mm) | 350 | 350 | 400 |
Output size(mm) | 5-60 | 5-60 | 5-60 | |
Capacity(t/h) | 50-80 | 70-120 | 130-180 | |
Motor power(kw) | 55-75 | 110-132 | 160-200 | |
Vibrating feeder | Capacity(t/h) | 80-120 | 100-160 | 130-260 |
Motor power(kw) | 7.5 | 11 | 15 | |
Diemension(m) | 3.3*1.6*1.3 | 3.7*1.8*1.2 | 4.3*1.8*1.4 | |
Conveyor belt | Width(mm) | 500 | 500 | 650 |
Speed(m/s) | 0.8-2 | 0.8-2 | 0.8-2 | |
