Processing Materials: Mobile sand making plants is used for artificial sand making and fine crushing of river pebble, iron ore, copper ore, ore tailings, talc, feldspar, fluorite, lead-zinc ore, tungsten ore and manganese ore. Applied Field: Mobile sand making plants is widely applied in building materials, thermal power, metallurgy, chemical industry, mining, refractory, ceramics, cement and other industries.

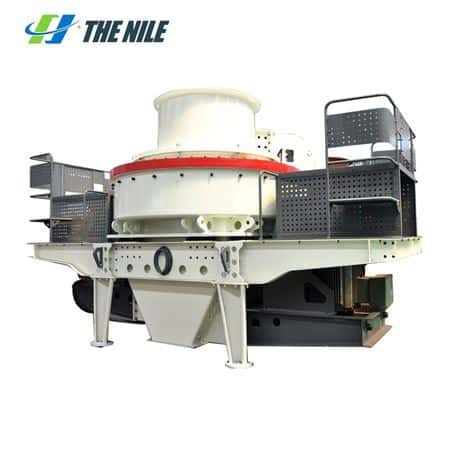

Introduction of Mobile Sand Making Plants
Mobile sand making plants is a kind of production equipment, which is widely used for fine crushing of various ores. It has replaced traditional equipment such as hammer crusher, roller crusher, and rod mill and become the mainstream equipment in the sand industry.
Factors affecting the production capacity of Mobile Sand Making Plants
1.Hardness of materials: Hard materials will cause slow speed, low capacity of sand making, and serious wear on the mobile sand making plants.
2.Material composition: the fine powder contained in the material of mobile sand making plants affects sand making, because it's easy to adhere and affect transportation. Therefore, the material with fine powder content should be screened in advance and screened out the fine powder as much as possible to avoid affecting the normal operation of the mobile sand making plants.
3.Fineness of finished materials of mobile sand making plants: the finer the material is, the smaller the sand making capacity is. Therefore, the fineness is generally set as medium fine.
4.Material viscosity: the greater the viscosity of materials, the easier it is to adhere. The material with high viscosity will adhere to the inner wall of mobile sand making plants. If it can not be cleaned in time, the working efficiency of the mobile sand making plants will be affected.
5.Material humidity: when the material contains a large amount of water, it's easy to adhere to the mobile sand making plants and cause blockage during the feeding and conveying process to reduces the sand making capacity. To solve this problem, we must first strictly control the humidity of materials when selecting materials. If the humidity of the material is too high, sunshine or air drying can be used to reduce the percentage of moisture in the material.
Model No. | VSI7611 | VSI8518 | VSI9526 | VSI1140 | VSI1145 | |
Capacity | Cascade Feeding | 120-180 | 200-260 | 300-380 | 450-520 | 500-640 |
Full Central Feeding | 60-90 | 100-130 | 150-190 | 225-260 | 250-360 | |
Max. Feeding size(mm) | Soft Material | 35 | 40 | 45 | 50 | 50 |
Hard Material | 30 | 35 | 40 | 45 | 45 | |
Rotation Speed (r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | 1100-1310 | |
Model of Motor | Y250M-4 | Y280M-4 | Y315M-4 | Y315L2-4 | Y315L2-4 | |
Double Motor Power | 55*2 | 90*2 | 132*2 | 200*2 | 220*2 | |
Weight (t) | 10 | 12 | 16 | 25.6 | 27.5 |
